Length of cable including connectors	2, 3, 5, 10, 20 m *
Fiber	Micro structured hollow core fiber

Optical Parameters

Beam parameter acceptance	Single mode laser beam	Single mode laser beam	Single mode laser beam
Wavelength	1000 - 1100 nm (IR)	1000 - 1100 nm (IR)	500 -550 nm (green)
Mode field diameter	40 µm	22 µm	16 µm
Max. peak laser power	500 MW **	100 MW **	100 MW **
Typical transmission ***	90%	70%	75%
GVD parameter	< 4 ps / (nm*km) ****	< 4 ps / (nm*km) ****	< 4 ps / (nm*km) ****
Polarisation	Unspecified	Linear	Unspecified
PER	30:1 *****	75:1	Unspecified

Connector laser side optics side

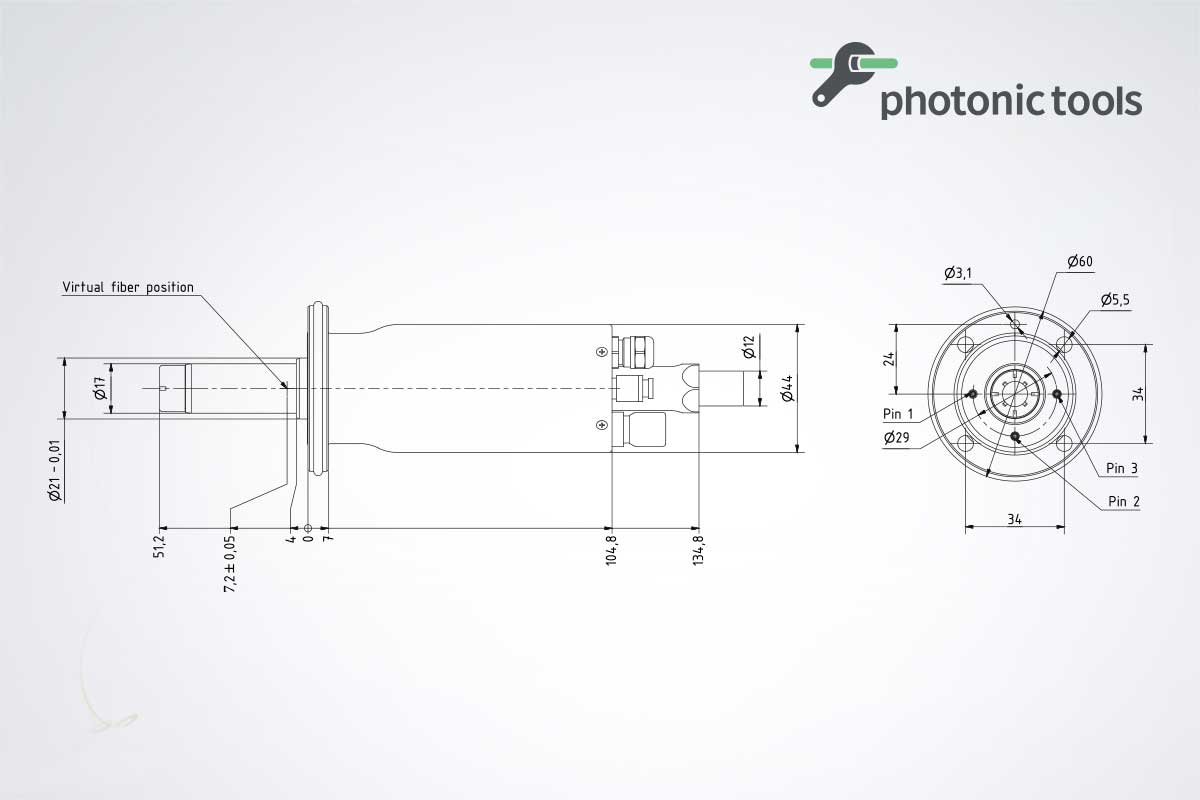

Optical pre-alignment	PT-F (Photonic Tools flange design), others on request
Cooling	Can be actively fuid-cooled
Max. gas pressure	0,5 MPa

Monitoring and electrical interface

Breakage, plug-in and temperature monitoring for interfacing to continuity monitoring	PT-F standard
Relative temperature and stray light indicators (optional)	On request
Data logging	On request

Protective conduit

Suitable for dynamic movements on robot or gantry system in a cable management system
Bending radius	> 250 mm

Accessories

Connector receptacles | Single mode beam launching system | Collimation modules | Processing heads

*others on request, **subject to coupling conditions, *** for 5m length, ****air filled micro structure, ***** subject to cable routing
All data subject to change without prior notice



Optical

Fibre core diameter	20, 50, 75, 100, 150, 200, 300, 400, 600, 800, 1000, 1500 µm *
Fibre clad diameter	360, 480, 720, 960, 1100, 1200, 1650 µm *
Beam parameter acceptance	200 mrad
Transmission wavelength	900 - 1100 nm, *
Max. average laser power	15 kW **

Mechanical

Typical length	5, 10, 15, 20, 30, 40, 50 m *
Connector standard	PT-B, PT-D, PT-F, PT-Q, pigtails
Min. bending radius	250 mm (300 mm for core diameter >1000 µm)
Dynmic applications	Suitable for use on robot or gantry

Electrical

Fibre continuity monitoring (FCMS)	According to connector standard
Relative temperature and stray light monitoring	Optional
Canbus communication	Optional

Environmental

Operating conditions	5 - 50 °C
Shipment and storage	- 25 - 70 °C.

 Accessories

Connector receptacles | Fibre coupling systems | Collimation modules | Processing heads

 *others on request, **subject to coupling conditions

All data subject to change without prior notice
