Modular laser processing head for ultrafast lasers MPH-UKP

  • Designed especially to the requirements of ultrafast laser applications
  • Single mode imaging quality and a wide range of optical set-ups to choose from
  • Defined opto-mechanical interfaces for modular extension
  • Modular design with continuous modular extension
  • Simple system integration / adaptation to the customer specific application

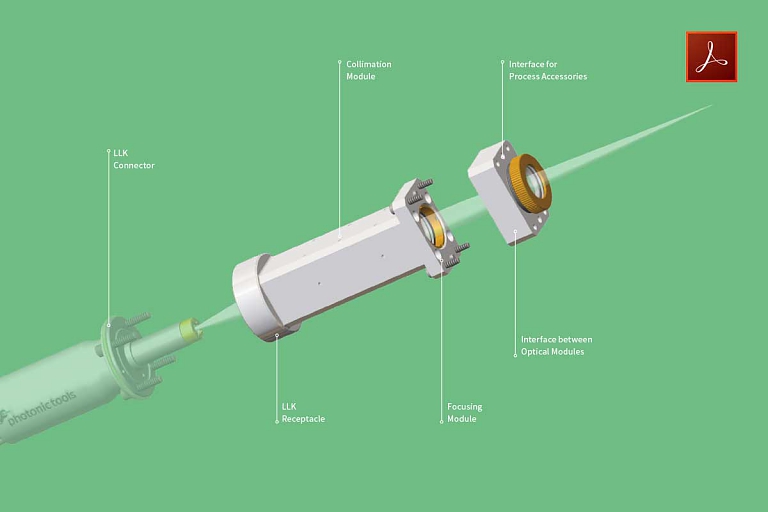

LLK Receptacle PT-F (Photonic Tools flange design)

Collimation module

Magnification ** 1.33, 1.0, 0.67, 0.5 *
Focal length ** 75, 100, 150, 200 mm *
Beam parameter acceptance
(half angle of laser beam exiting the fibre)
50 mrad *
Wavelength 900 - 1100 nm *
Max. average laser power 1 kW (above 350 W cooling modules might be required)

Process monitoring / beam splitting module

Clear aperture Ø 20 mm

Beam shaping modules

Beam expander module
Rectangular beam shaping module
Fast scanning module

Focusing module

Magnification ** 0.75, 1.0, 1.5, 2.0 *
Focal length ** 75, 100, 150, 200 mm *
Clear aperture Ø 20 mm
Mechanical interfaces to attached modules

Process modules

Cover slide module
Cutting nozzle
Crossjet module

Monitoring modules

Cover slide monitor
Cctv viewing
Temperature monitoring

Workpiece illumination

*others on request, **additional cooling packages might be required
All data subject to change without prior notice
